GESIT supplies a complete range of Cathodic Protection (CP) accessories required for specifying, installing, commissioning, and maintaining both SACP and ICCP systems.
All components are available as branded products from major manufacturers or as GESIT-fabricated items, fully customizable in materials, dimensions, and configurations to meet project specifications and standards (NACE/AMPP, ASTM, ISO).

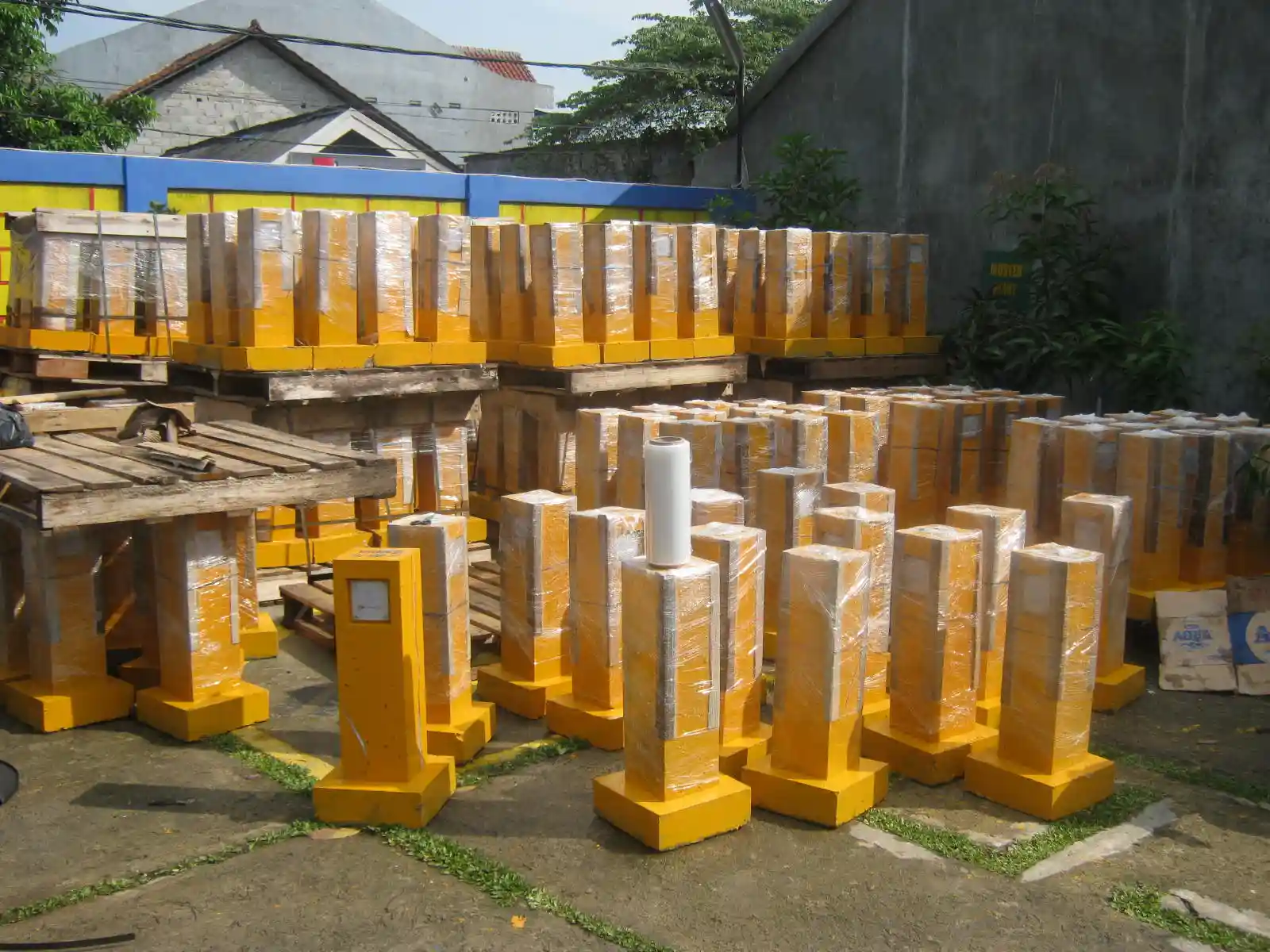

• Test Stations & Test Points
Branded models (e.g., Big Fink/equivalent) or GESIT-fabricated units using cast aluminium heads, stainless steel bosses, or FRP housings. Available with steel or concrete supports for CP monitoring.
• Reference Electrodes (Cu/CuSO₄, Ag/AgCl)
Portable or permanent reference electrodes for potential measurements in soil, freshwater, or seawater applications.

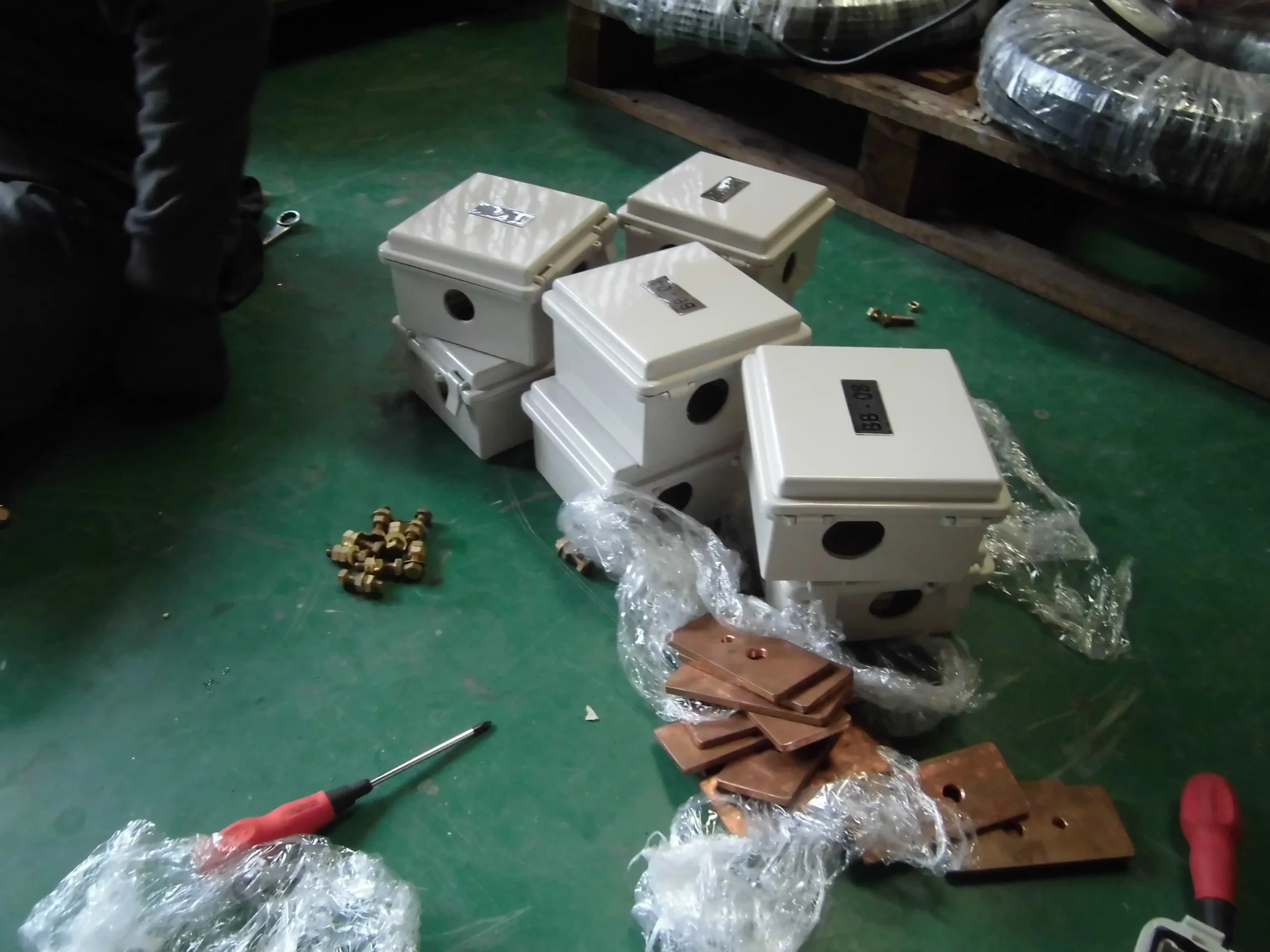

• Junction Boxes (PJB, NJB, Monitoring JB)
Positive/negative/monitoring junction boxes in FRP, stainless steel, or coated mild steel. Configurable with fuses, shunts, meters, and cable glands.
• Anode & Structure Cables
Copper cables with XLPE/PVC, HMWPE, or armored insulation, suitable for anode beds, structures, reference electrodes, and junction boxes.
• Cable Glands, Lugs & Termination Kits
Full termination accessories including glands, compression lugs, tinned-copper lugs, heat-shrink tubing, and sealing kits.

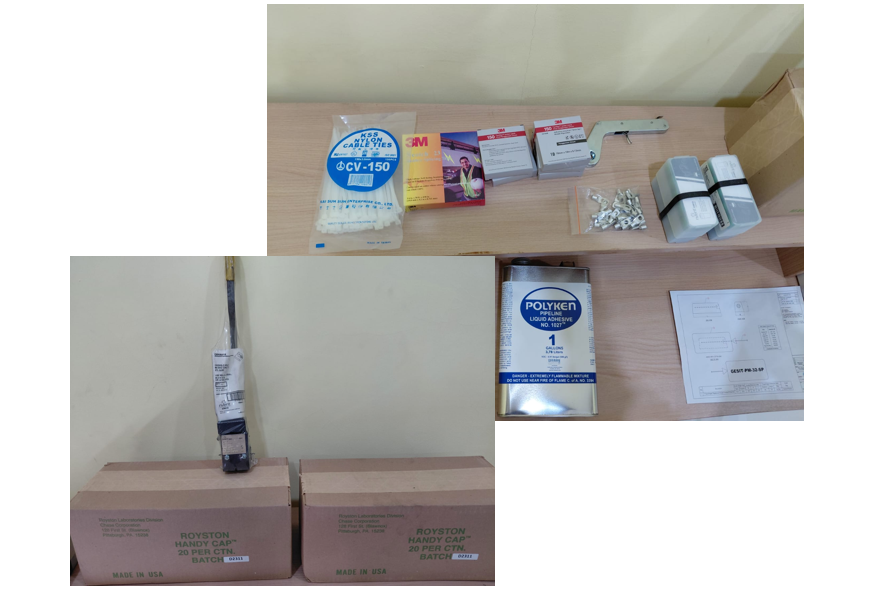

• Exothermic / Thermit Welding (Cadweld) Kits
Complete weld kits for permanent low-resistance cable-to-steel or cable-to-cable connections, including molds and weld metal.
• Backfill & Carbonaceous Materials
Coke breeze, bentonite, and gypsum-based mixes for improving conductivity around anode beds or pre-packaged anodes.
• Anode Centralizers, Vent Pipes & Casings
Centralizers, PVC/HDPE vent pipes, and steel casings for deep/shallow ICCP groundbeds.
• Concrete / Encased Supports & Concrete Pads
Precast or custom concrete supports for mounting test stations, JB poles, or anode assemblies.
• Tags, Labels, Cable Markers & Identification Plates
Stainless-steel ID plates, cable tags, markers, and labeling systems for asset tracking and field identification.
• Test Station Accessories
Terminal blocks, shunts, meters, fuses, and internal wiring kits for assembly or replacement.
• Pre-Packaged Anode Kits
Complete magnesium/aluminium anode packages with backfill, cable tail, and pre-assembled connections.
• Fabricated Assemblies
Pre-wired junction boxes, pre-terminated cable tails, and customized assemblies to reduce field installation time.
